CFP2000 Series

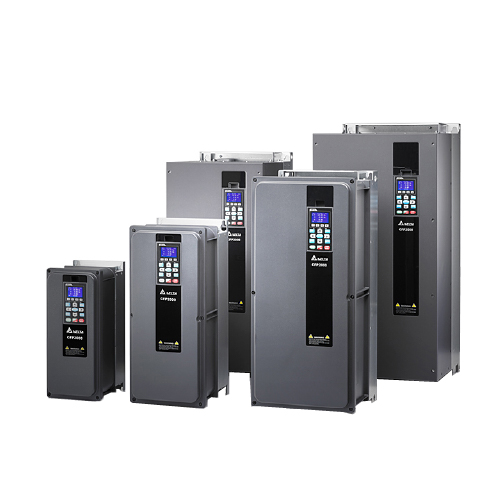

Delta's CFP2000 series is an AC motor drive specially designed for HVAC, fans & pumps, and water treatment applications. It is designed with an IP55 enclosure to provide effective protection from dust and other particles and to offer a good level of protection from water. In addition, it includes many outstanding features and built-in functions that reduce setup and tuning time in operation and provide higher efficiency.
The CFP2000 is equipped with a built-in EMC filter and a DC choke. This design replaces the need for an electrical distribution cabinet and saves space for other devices, while providing the benefits of harmonic suppression and better power quality to the system. Various parameter groups are also included, which allow you to simply select the needed application in the parameter group setting and the system setup is ready. If a higher safety standard is required, an optional main switch function is also available upon selection. Other outstanding features include support for both IM/PM motors, a real time clock, built-in 10k steps PLC capacity and various optional extension cards. The CFP2000 series integrates all of your needs into one drive. It is the friendliest and smartest choice available in the industry.

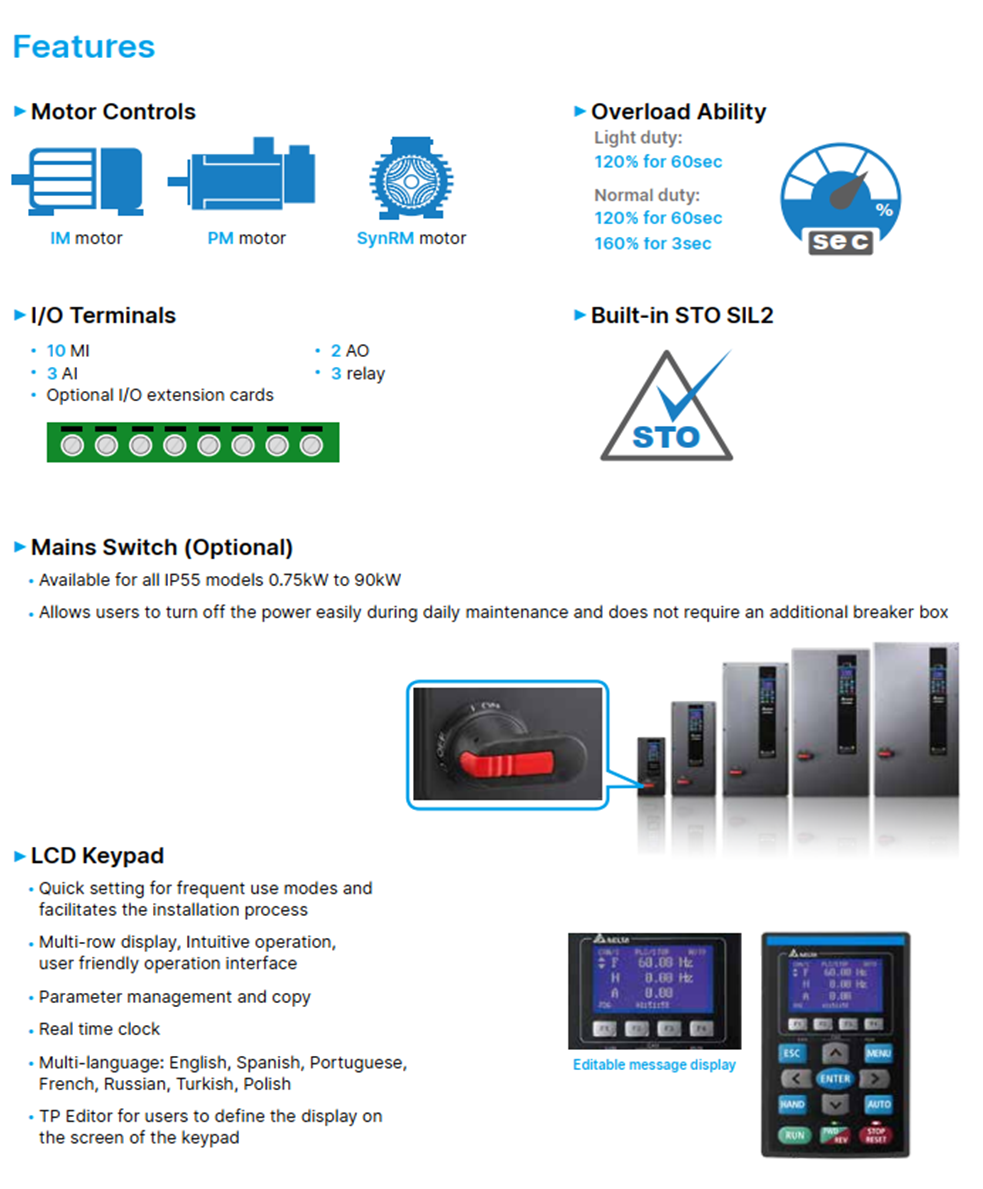

Features & Benefits

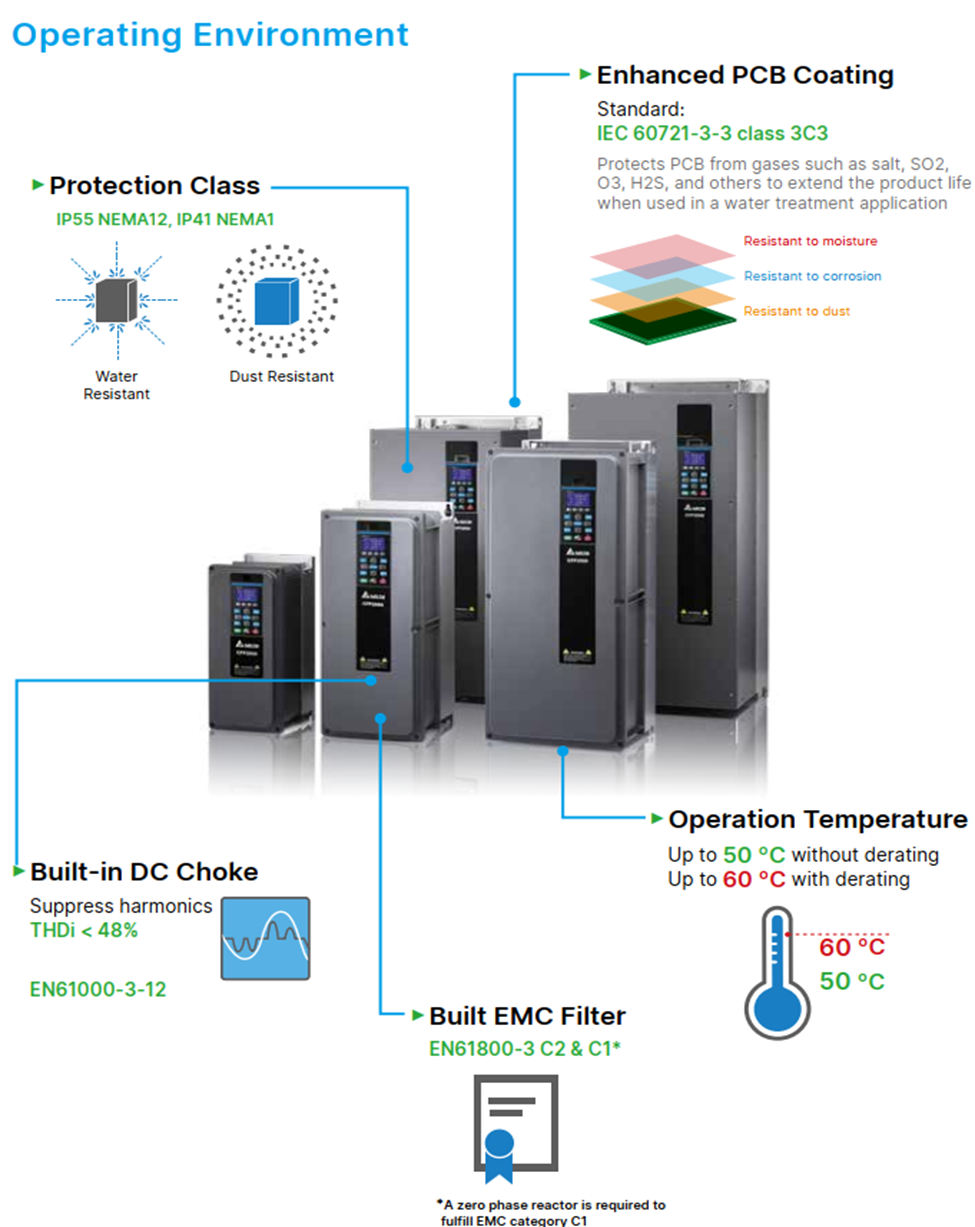

IP55 and IP41 enclosure protections
Optional built-in mains switch for IP55 models
Built-in EMC filter; IEC61800-3 C2, C1 standard
Built-in DC reactor effectively lowers harmonic distortion; IEC61000-3-12 standard
PCB (Printed Circuit Board) enhances drive durability; Class 3C3 standard
Built-in application selections and a quick start function simplify installation and setup and save parameter setting time
Fire mode provides PID control and a bypass alarm function that ensures uninterrupted drive operation to extract smoke, supply water, and balance pressure at the emergency exit
Built-in PLC function 10k steps and Real Time Clock (RTC)
2 sets of PID controller functions
Built-in Safe Torque Off (STO) SIL2 function
Built-in MODBUS and BACnet MS/TP communication
Optional communication cards: PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, CANopen Applications
HVAC, fans, pumps, cooling systems, factory water supply & water treatment systems
| Frame A |
|
Frame B | ||
| Model | spec |
|
Model | spec |
| VFD007FP2EA-52 | 220V 3Phase 0.7kW 1Hp |
|
VFD075FP2EA-52 | 220V 3Phase 7.5kW 10Hp |
| VFD015FP2EA-52 | 220V 3Phase 1.5kW 2Hp |
|
VFD110FP2EA-52 | 220V 3Phase 11kW 15Hp |
| VFD022FP2EA-52 | 220V 3Phase 2.2kW 3Hp |
|
VFD110FP4EA-52 | 400V 3Phase 11kW 15Hp |
| VFD037FP2EA-52 | 220V 3Phase 3.7kW 5Hp |
|
VFD150FP4EA-52 | 400V 3Phase 15kW 20Hp |
| VFD055FP2EA-52 | 220V 3Phase 5.5kW 7.5Hp |
|
VFD185FP4EA-52 | 400V 3Phase 18.5kW 25Hp |
| VFD007FP4EA-52 | 400V 3Phase 0.7kW 1Hp |
|
VFD220FP4EA-52 | 400V 3Phase 22kW 30Hp |
| VFD015FP4EA-52 | 400V 3Phase 1.5kW 2Hp |
|
VFD110FP5EA-52 | 575V 3Phase 11kW 15Hp |
| VFD022FP4EA-52 | 400V 3Phase 2.2kW 3Hp |
|
VFD150FP5EA-52 | 575V 3Phase 15kW 20Hp |
| VFD037FP4EA-52 | 400V 3Phase 3.7kW 5Hp |
|
VFD185FP5EA-52 | 575V 3Phase 18.5kW 25Hp |
| VFD040FP4EA-52 | 400V 3Phase 4kW 5.5Hp |
|
VFD075FP2EA-52S | 220V 3Phase 7.5kW 10Hp Main switch |
| VFD055FP4EA-52 | 400V 3Phase 5.5kW 7.5Hp |
|
VFD110FP2EA-52S | 220V 3Phase 11kW 15Hp Main switch |
| VFD075FP4EA-52 | 400V 3Phase 7.5kW 10Hp |
|
VFD110FP4EA-52S | 400V 3Phase 11kW 15Hp Main switch |
| VFD015FP5EA-52 | 575V 3Phase 1.5kW 2Hp |
|
VFD150FP4EA-52S | 400V 3Phase 15kW 20Hp Main switch |
| VFD022FP5EA-52 | 575V 3Phase 2.2kW 3Hp |
|
VFD185FP4EA-52S | 400V 3Phase 18.5kW 25Hp Main switch |
| VFD037FP5EA-52 | 575V 3Phase 3.7kW 5Hp |
|
VFD220FP4EA-52S | 400V 3Phase 22kW 30Hp Main switch |
| VFD055FP5EA-52 | 575V 3Phase 5.5kW 7.5Hp |
|
VFD110FP5EA-52S | 575V 3Phase 11kW 15Hp Main switch |
| VFD075FP5EA-52 | 575V 3Phase 7.5kW 10Hp |
|
VFD150FP5EA-52S | 575V 3Phase 15kW 20Hp Main switch |
| VFD007FP2EA-52S | 220V 3Phase 0.7kW 1Hp Main switch |
|
VFD185FP5EA-52S | 575V 3Phase 18.5kW 25Hp Main switch |
| VFD015FP2EA-52S | 220V 3Phase 1.5kW 2Hp Main switch |
|
|
|
| VFD022FP2EA-52S | 220V 3Phase 2.2kW 3Hp Main switch |
|
|
|
| VFD037FP2EA-52S | 220V 3Phase 3.7kW 5Hp Main switch |
|
|
|
| VFD055FP2EA-52S | 220V 3Phase 5.5kW 7.5Hp Main switch |
|
|
|
| VFD007FP4EA-52S | 400V 3Phase 0.7kW 1Hp Main switch |
|
|
|
| VFD015FP4EA-52S | 400V 3Phase 1.5kW 2Hp Main switch |
|
|
|
| VFD022FP4EA-52S | 400V 3Phase 2.2kW 3Hp Main switch |
|
|
|
| VFD037FP4EA-52S | 400V 3Phase 3.7kW 5Hp Main switch |
|
|
|
| VFD040FP4EA-52S | 400V 3Phase 4kW 5.5Hp Main switch |
|
|
|
| VFD055FP4EA-52S | 400V 3Phase 5.5kW 7.5Hp Main switch |
|
|
|
| VFD075FP4EA-52S | 400V 3Phase 7.5kW 10Hp Main switch |
|
|
|
| VFD015FP5EA-52S | 575V 3Phase 1.5kW 2Hp Main switch |
|
|
|
| VFD022FP5EA-52S | 575V 3Phase 2.2kW 3Hp Main switch |
|
|
|
| VFD037FP5EA-52S | 575V 3Phase 3.7kW 5Hp Main switch |
|
|
|
| VFD055FP5EA-52S | 575V 3Phase 5.5kW 7.5Hp Main switch |
|
|
|
| VFD075FP5EA-52S | 575V 3Phase 7.5kW 10Hp Main switch |
|
|
|
| Frame C |
|
Frame D | ||
| Model | spec |
|
Model | spec |
| VFD150FP2EA-52 | 220V 3Phase 15kW 20Hp |
|
VFD220FP2EA-52 | 220V 3Phase 22kW 30Hp |
| VFD185FP2EA-52 | 220V 3Phase 18.5kW 25Hp |
|
VFD300FP2EA-52 | 220V 3Phase 30kW 40Hp |
| VFD300FP4EA-52 | 400V 3Phase 30kW 40Hp |
|
VFD450FP4EA-52 | 400V 3Phase 45kW 60Hp |
| VFD370FP4EA-52 | 400V 3Phase 37kW 50Hp |
|
VFD550FP4EA-52 | 400V 3Phase 55kW 75Hp |
| VFD220FP5EA-52 | 575V 3Phase 22kW 30Hp |
|
VFD450FP5EA-52 | 575V 3Phase 45kW 60Hp |
| VFD300FP5EA-52 | 575V 3Phase 30kW 40Hp |
|
VFD550FP5EA-52 | 575V 3Phase 55kW 75Hp |
| VFD370FP5EA-52 | 575V 3Phase 37kW 50Hp |
|
VFD220FP2EA-52S | 220V 3Phase 22kW 30Hp Main switch |
| VFD150FP2EA-52S | 220V 3Phase 15kW 20Hp Main switch |
|
VFD300FP2EA-52S | 220V 3Phase 30kW 40Hp Main switch |
| VFD185FP2EA-52S | 220V 3Phase 18.5kW 25Hp Main switch |
|
VFD450FP4EA-52S | 400V 3Phase 45kW 60Hp Main switch |
| VFD300FP4EA-52S | 400V 3Phase 30kW 40Hp Main switch |
|
VFD550FP4EA-52S | 400V 3Phase 55kW 75Hp Main switch |
| VFD370FP4EA-52S | 400V 3Phase 37kW 50Hp Main switch |
|
VFD450FP5EA-52S | 575V 3Phase 45kW 60Hp Main switch |
| VFD220FP5EA-52S | 575V 3Phase 22kW 30Hp Main switch |
|
VFD550FP5EA-52S | 575V 3Phase 55kW 75Hp Main switch |
| VFD300FP5EA-52S | 575V 3Phase 30kW 40Hp Main switch |
|
|
|
| VFD370FP5EA-52S | 575V 3Phase 37kW 50Hp Main switch |
|
|
|
