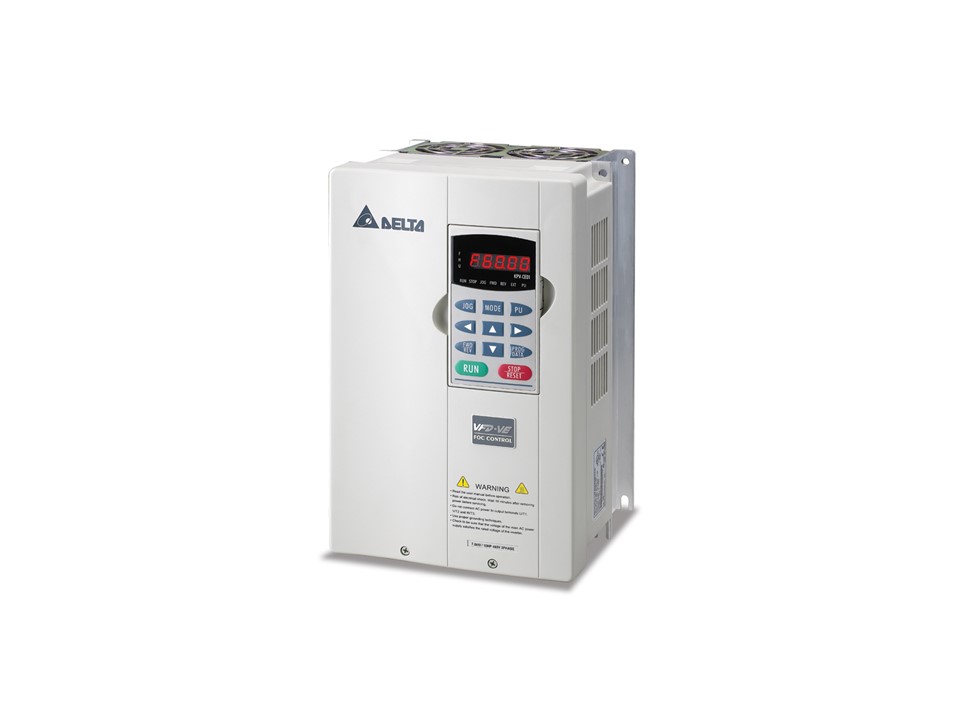

This series adopts FOC (Field Oriented Control) which is a far more precise vector control algorithm. It can be used in both speed control and position control similar to a servo motor drive. The multi-function I/O terminal is expanded to meet users' various application needs. In addition, it is supplied with a Windows based PC software program for managing parameters and dynamic monitoring. It provides an excellent solution for load regulation. It can output 150% of rated torque at zero speed, and it can have "point to point" and relative distance control functions for position control, making it the best choice for challenging industrial control applications.
• Output frequency: 0~600Hz
• 4 points adjustable V/F curve, Sensorless Vector Control, Field-Oriented Control
• Position/Speed/Torque control mode
• Sensorless Vector Control 150% torque at 0.5Hz
• 150% holding torque with speed feedback
• Overload : 150% for 1 minute and 200% for 2 seconds
• Rotational/Static Auto-tuning for the motor parameters and Auto-tuning for load inertia
• Excellence torque limit in all 4 quadrants of operation
• Dual RS-485 ports, Fieldbus and PC software tools for applications

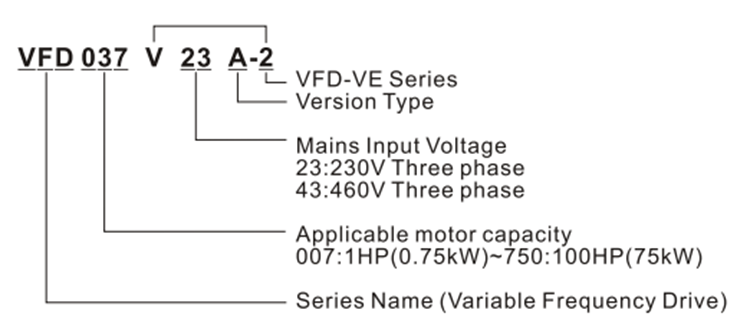

| VFD-VE | VFD007V23A-2 |
| VFD007V43A-2 | |
| VFD015V23A-2 | |
| VFD015V43A-2 | |
| VFD022V23A-2 | |
| VFD022V43A-2 | |
| VFD037V23A-2 | |
| VFD037V43A-2 | |
| VFD055V23A-2 | |
| VFD055V43A-2 | |
| VFD075V23A-2 | |
| VFD075V43A-2 | |
| VFD110V43B-2 | |
| VFD110V23A-2 | |
| VFD110V43A-2 | |
| VFD150V23A-2 | |
| VFD150V43A-2 | |
| VFD185V23A-2 | |
| VFD185V43A-2 | |
| VFD220V23A-2 | |
| VFD220V43A-2 | |
| VFD300V43A-2 | |
| VFD370V43A-2 | |
| VFD450V43A-2 | |
| VFD300V23A-2 | |
| VFD370V23A-2 | |
| VFD550V43C-2 | |
| VFD750V43C-2 |
