Applications
Precise carving machine, precise lathe/milling machine, double column type machining center, TFT LCD cutting machine, robot arm, IC packaging machine, high-speed packaging machine, CNC processing equipment, injection processing equipment, label inserting machine, food packaging machine, printing

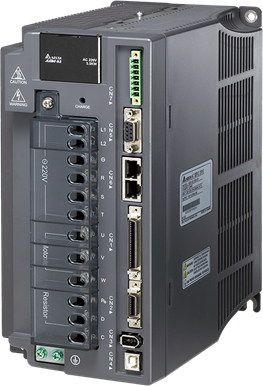

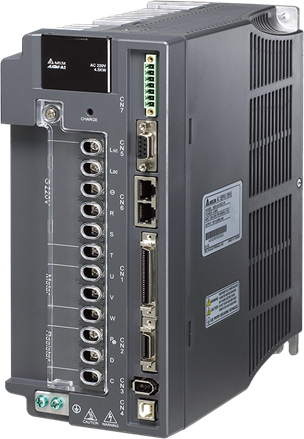

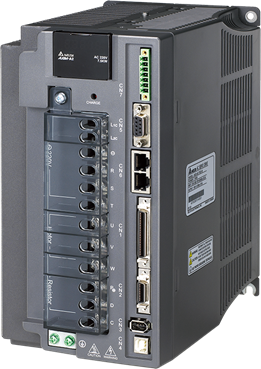

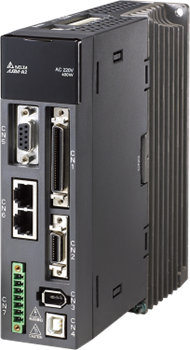

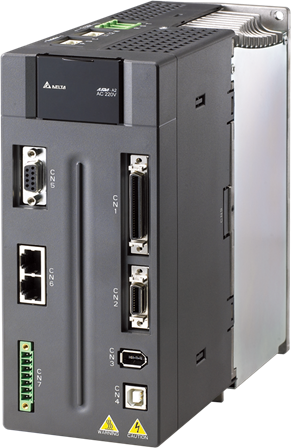

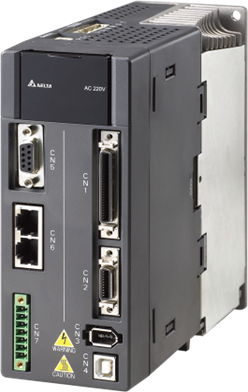

Specifications
There are five models of ASDA-A2 series: ASDA-A2-L, ASDA-A2-M, ASDA-A2-F, ASDA-A2-U, ASDA-A2-E
ASDA-A2-L
(Full-close Control)
ASDA-A2-M
(CANopen)
ASDA-A2-F
(DMCNET)
ASDA-A2-U
(Internal Position Control)
ASDA-A2-E
STO Safety Function
(EtherCAT)
High Precision Control

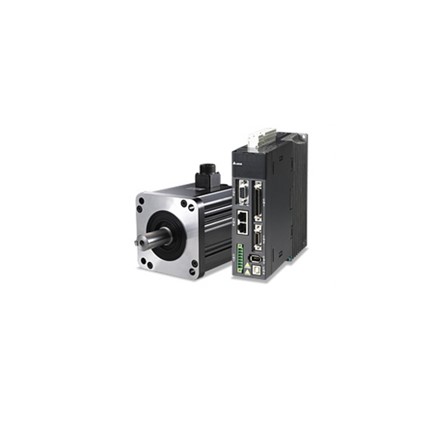

ECMA series servo motors feature incremental encoder with 20-bit resolution (1280000 pulses/revolution). Existing functions to meet the requirements from delicate process have been enhanced. Stable rotation at low speed has also been achieved.
Up to 1kHz frequency response. Settling time below 1ms.
Superlative Vibration Suppression
Built-in automatic low-frequency vibration suppression (for crane control): two vibration suppression filters are provided to minimize the vibration at machine edges automatically and sufficiently.
Built-in automatic high-frequency resonance suppression: two auto notch filters are provided to suppress the mechanical resonance automatically.
Flexible Internal Position Mode (Pr Mode)
ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.
64 internal position settings are offered for continuous motion control.
Destination position, speed and acceleration & deceleration commands could be changed in the middle of operation.
35 kinds of homing modes are available.
Unique Built-in Electronic Cam (E-CAM)
Up to 720 E-CAM points.
Smooth interpolation between points can be completed automatically to yield a flexible programming.
ASDA-A2-Soft configuration software provides electronic cam (E-CAM) profile editing function.
Applicable for rotary cutoff and flying shear applications.
Full Closed-loop Control (Capable of reading second feedback signals)
Built-in position feedback interface (CN5) is able to read second feedback signals from motor encoder and send the current position back to the drive to form a full closed-loop so that high accuracy position control can be accomplished.
Reduce the effects of mechanical imperfections such as backlash and flexibility to ensure the position precision at machine edges.
Features of ASDA-A2-M:
CANbus communication speed is 1M bps, in comply with CANopen DS301 standard.
3 CANmotion modes (Profile Position Mode, Interpolation Position Mode, Homing Mode) are provided for CANopen DS402 standard. Max. length of the communication cable can reach up to 40m (when using standard communication cable).
Station configuration can be set via parameter settings.
In conjunction with Delta’s PLC, it is able to save the wiring and establish Delta fieldbus system configuration.
Features of ASDA-A2-U:
Max. 14 digital inputs.
Using powerful “Pr mode” is able to perform complex motions.
Quick connector is available for easy installation and use.
Built-in DC 24V power supply is provided to simplify the wiring and save space.
Features of ASDA-A2-E :

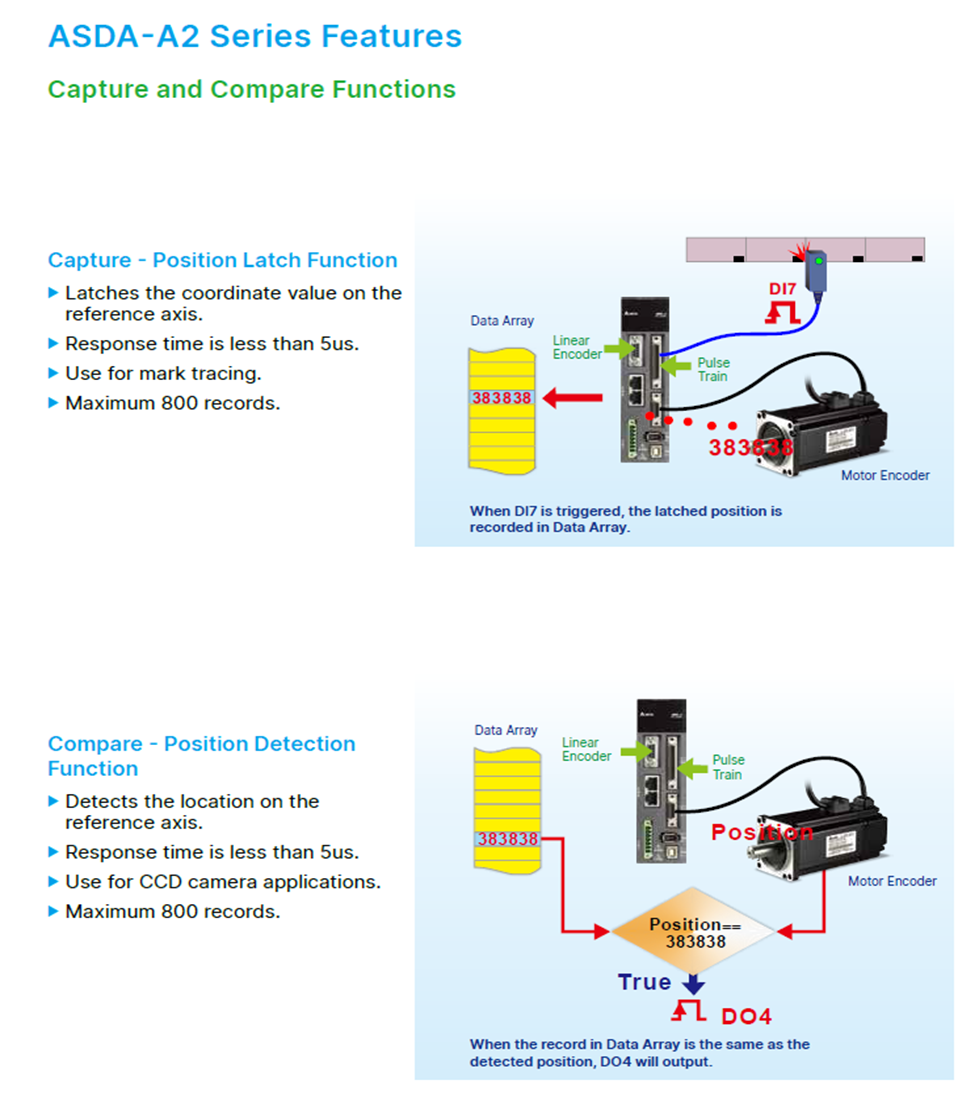

Touch probe function can be enabled with two dedicated Digital Inputs (DI) on CN7 or the external encoder.
Integrated Safe Torque Off (STO) safety function according to the standards of EN 61800-5-2; IEC 61508, SIL2; IEC 62061, SIL2; ISO 13849-1, Cat.3 ,PL=d
Wide power range coverage in both 220V and 400V
Supports full-closed loop control
Supports absolute type and incremental type ECMA Series servo motors
Applications
Precise carving machine, precise lathe/milling machine, double column type machining center, TFT LCD cutting machine, robot arm, IC packaging machine, high-speed packaging machine, CNC processing equipment, injection processing equipment, label inserting machine, food packaging machine, printing
Specifications
There are five models of ASDA-A2 series: ASDA-A2-L, ASDA-A2-M, ASDA-A2-F, ASDA-A2-U, ASDA-A2-E
ASDA-A2-L
(Full-close Control)
ASDA-A2-M
(CANopen)
ASDA-A2-F
(DMCNET)
ASDA-A2-U
(Internal Position Control)
ASDA-A2-E
STO Safety Function
(EtherCAT)
High Precision Control
ECMA series servo motors feature incremental encoder with 20-bit resolution (1280000 pulses/revolution). Existing functions to meet the requirements from delicate process have been enhanced. Stable rotation at low speed has also been achieved.
Up to 1kHz frequency response. Settling time below 1ms.
Superlative Vibration Suppression
Built-in automatic low-frequency vibration suppression (for crane control): two vibration suppression filters are provided to minimize the vibration at machine edges automatically and sufficiently.
Built-in automatic high-frequency resonance suppression: two auto notch filters are provided to suppress the mechanical resonance automatically.
Flexible Internal Position Mode (Pr Mode)
ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.
64 internal position settings are offered for continuous motion control.
Destination position, speed and acceleration & deceleration commands could be changed in the middle of operation.
35 kinds of homing modes are available.
Unique Built-in Electronic Cam (E-CAM)
Up to 720 E-CAM points.
Smooth interpolation between points can be completed automatically to yield a flexible programming.
ASDA-A2-Soft configuration software provides electronic cam (E-CAM) profile editing function.
Applicable for rotary cutoff and flying shear applications.
Full Closed-loop Control (Capable of reading second feedback signals)
Built-in position feedback interface (CN5) is able to read second feedback signals from motor encoder and send the current position back to the drive to form a full closed-loop so that high accuracy position control can be accomplished.
Reduce the effects of mechanical imperfections such as backlash and flexibility to ensure the position precision at machine edges.
Features of ASDA-A2-M:
CANbus communication speed is 1M bps, in comply with CANopen DS301 standard.
3 CANmotion modes (Profile Position Mode, Interpolation Position Mode, Homing Mode) are provided for CANopen DS402 standard. Max. length of the communication cable can reach up to 40m (when using standard communication cable).
Station configuration can be set via parameter settings.
In conjunction with Delta’s PLC, it is able to save the wiring and establish Delta fieldbus system configuration.
Features of ASDA-A2-U:
Max. 14 digital inputs.
Using powerful “Pr mode” is able to perform complex motions.
Quick connector is available for easy installation and use.
Built-in DC 24V power supply is provided to simplify the wiring and save space.
Features of ASDA-A2-E :
Touch probe function can be enabled with two dedicated Digital Inputs (DI) on CN7 or the external encoder.
Integrated Safe Torque Off (STO) safety function according to the standards of EN 61800-5-2; IEC 61508, SIL2; IEC 62061, SIL2; ISO 13849-1, Cat.3 ,PL=d
Wide power range coverage in both 220V and 400V
Supports full-closed loop control
Supports absolute type and incremental type ECMA Series servo motors
| Frame A |
|
Frame B |
|
|
|
|
| Model |
Spec |
|
Model |
Spec |
| ASD-A2-0121-L |
220V 1Phase or 3Phase 100W |
|
ASD-A2-0721-L |
220V 1Phase or 3Phase 750W |
| ASD-A2-0121-F |
220V 1Phase or 3Phase 100W DMCNET |
|
ASD-A2-0721-F |
220V 1Phase or 3Phase 750W DMCNET |
| ASD-A2-0121-M |
220V 1Phase or 3Phase 100W CANOpen |
|
ASD-A2-0721-M |
220V 1Phase or 3Phase 750W CANOpen |
| ASD-A2-0121-E |
220V 1Phase or 3Phase 100W EtherCAT |
|
ASD-A2-0721-E |
220V 1Phase or 3Phase 750W EtherCAT |
| ASD-A2-0121-U |
220V 1Phase or 3Phase 100W Extension DI |
|
ASD-A2-0721-U |
220V 1Phase or 3Phase 750W Extension DI |
| ASD-A2-0221-L |
220V 1Phase or 3Phase 200W |
|
ASD-A2-1021-L |
220V 1Phase or 3Phase 1.0kW |
| ASD-A2-0221-F |
220V 1Phase or 3Phase 200W DMCNET |
|
ASD-A2-1021-F |
220V 1Phase or 3Phase 1.0kW DMCNET |
| ASD-A2-0221-M |
220V 1Phase or 3Phase 200W CANOpen |
|
ASD-A2-1021-M |
220V 1Phase or 3Phase 1.0kW CANOpen |
| ASD-A2-0221-E |
220V 1Phase or 3Phase 200W EtherCAT |
|
ASD-A2-1021-E |
220V 1Phase or 3Phase 1.0kW EtherCAT |
| ASD-A2-0221-U |
220V 1Phase or 3Phase 200W Extension DI |
|
ASD-A2-1021-U |
220V 1Phase or 3Phase 1.0kW Extension DI |
| ASD-A2-0421-L |
220V 1Phase or 3Phase 400W |
|
ASD-A2-1521-L |
220V 1Phase or 3Phase 1.5kW |
| ASD-A2-0421-F |
220V 1Phase or 3Phase 400W DMCNET |
|
ASD-A2-1521-F |
220V 1Phase or 3Phase 1.5kW DMCNET |
| ASD-A2-0421-M |
220V 1Phase or 3Phase 400W CANOpen |
|
ASD-A2-1521-M |
220V 1Phase or 3Phase 1.5kW CANOpen |
| ASD-A2-0421-E |
220V 1Phase or 3Phase 400W EtherCAT |
|
ASD-A2-1521-E |
220V 1Phase or 3Phase 1.5kW EtherCAT |
| ASD-A2-0421-U |
220V 1Phase or 3Phase 400W Extension DI |
|
ASD-A2-1521-U |
220V 1Phase or 3Phase 1.5kW Extension DI |
|
|
|
|
|
|
|
| Frame C |
|
Frame D |
|
|
|
|
| Model |
Spec |
|
Model |
Spec |
| ASD-A2-2023-L |
220V 3Phase 2.0kW |
|
|
ASD-A2-4523-L |
220V 3Phase 4.5kW |
| ASD-A2-2023-F |
220V 3Phase 2.0kW DMCNET |
|
ASD-A2-4523-F |
220V 3Phase 4.5kW DMCNET |
| ASD-A2-2023-M |
220V 3Phase 2.0kW CANOpen |
|
ASD-A2-4523-M |
220V 3Phase 4.5kW CANOpen |
| ASD-A2-2023-E |
220V 3Phase 2.0kW EtherCAT |
|
ASD-A2-4523-E |
220V 3Phase 4.5kW EtherCAT |
| ASD-A2-2023-U |
220V 3Phase 2.0kW Extension DI |
|
ASD-A2-4523-U |
220V 3Phase 4.5kW Extension DI |
| ASD-A2-3023-L |
220V 3Phase 3.0kW |
|
|
|
|
|
| ASD-A2-3023-F |
220V 3Phase 3.0kW DMCNET |
|
|
|
|
| ASD-A2-3023-M |
220V 3Phase 3.0kW CANOpen |
|
|
|
|
| ASD-A2-3023-E |
220V 3Phase 3.0kW EtherCAT |
|
|
|
|
| ASD-A2-3023-U |
220V 3Phase 3.0kW Extension DI |
|
|
|
|
| ASD-A2-0743-L |
400V 3Phase 750W |
|
|
|
|
| ASD-A2-0743-F |
400V 3Phase 750W DMCNET |
|
|
|
|
| ASD-A2-0743-M |
400V 3Phase 750W CANOpen |
|
|
|
|
| ASD-A2-0743-E |
400V 3Phase 750W EtherCAT |
|
|
|
|
| ASD-A2-0743-U |
400V 3Phase 750W Extension DI |
|
|
|
|
| ASD-A2-1043-L |
400V 3Phase 1.0kW |
|
|
|
|
| ASD-A2-1043-F |
400V 3Phase 1.0kW DMCNET |
|
|
|
|
| ASD-A2-1043-M |
400V 3Phase 1.0kW CANOpen |
|
|
|
|
| ASD-A2-1043-E |
400V 3Phase 1.0kW EtherCAT |
|
|
|
|
| ASD-A2-1043-U |
400V 3Phase 1.0kW Extension DI |
|
|
|
|
| ASD-A2-1543-L |
400V 3Phase 1.5kW |
|
|
|
|
| ASD-A2-1543-F |
400V 3Phase 1.5kW DMCNET |
|
|
|
|
| ASD-A2-1543-M |
400V 3Phase 1.5kW CANOpen |
|
|
|
|
| ASD-A2-1543-E |
400V 3Phase 1.5kW EtherCAT |
|
|
|
|
| ASD-A2-1543-U |
400V 3Phase 1.5kW Extension DI |
|
|
|
|
|
|
|
|
|
|
|
| Frame E |
|
Frame F |
|
|
|
|
| Model |
Spec |
|
Model |
Spec |
| ASD-A2-5523-L |
220V 3Phase 5.5kW |
|
|
ASD-A2-7523-L |
220V 3Phase 7.5kW |
| ASD-A2-5523-F |
220V 3Phase 5.5kW DMCNET |
|
ASD-A2-7523-F |
220V 3Phase 7.5kW DMCNET |
| ASD-A2-5523-M |
220V 3Phase 5.5kW CANOpen |
|
ASD-A2-7523-M |
220V 3Phase 7.5kW CANOpen |
| ASD-A2-5523-E |
220V 3Phase 5.5kW EtherCAT |
|
ASD-A2-7523-E |
220V 3Phase 7.5kW EtherCAT |
| ASD-A2-5523-U |
220V 3Phase 5.5kW Extension DI |
|
ASD-A2-7523-U |
220V 3Phase 7.5kW Extension DI |
| ASD-A2-2043-L |
400V 3Phase 2.0kW |
|
ASD-A2-7543-L |
400V 3Phase 7.5kW |
| ASD-A2-2043-F |
400V 3Phase 2.0kW DMCNET |
|
ASD-A2-7543-F |
400V 3Phase 7.5kW DMCNET |
| ASD-A2-2043-M |
400V 3Phase 2.0kW CANOpen |
|
ASD-A2-7543-M |
400V 3Phase 7.5kW CANOpen |
| ASD-A2-2043-E |
400V 3Phase 2.0kW EtherCAT |
|
ASD-A2-7543-E |
400V 3Phase 7.5kW EtherCAT |
| ASD-A2-2043-U |
400V 3Phase 2.0kW Extension DI |
|
ASD-A2-7543-U |
400V 3Phase 7.5kW Extension DI |
| ASD-A2-3043-L |
400V 3Phase 3.0kW |
|
|
|
|
| ASD-A2-3043-F |
400V 3Phase 3.0kW DMCNET |
|
|
|
|
| ASD-A2-3043-M |
400V 3Phase 3.0kW CANOpen |
|
|
|
|
| ASD-A2-3043-E |
400V 3Phase 3.0kW EtherCAT |
|
|
|
|
| ASD-A2-3043-U |
400V 3Phase 3.0kW Extension DI |
|
|
|
|
| ASD-A2-4543-L |
400V 3Phase 4.5kW |
|
|
|
|
| ASD-A2-4543-F |
400V 3Phase 4.5kW DMCNET |
|
|
|
|
| ASD-A2-4543-M |
400V 3Phase 4.5kW CANOpen |
|
|
|
|
| ASD-A2-4543-E |
400V 3Phase 4.5kW EtherCAT |
|
|
|
|
| ASD-A2-4543-U |
400V 3Phase 4.5kW Extension DI |
|
|
|
|
| ASD-A2-5543-L |
400V 3Phase 5.5kW |
|
|
|
|
| ASD-A2-5543-F |
400V 3Phase 5.5kW DMCNET |
|
|
|
|
| ASD-A2-5543-M |
400V 3Phase 5.5kW CANOpen |
|
|
|
|
| ASD-A2-5543-E |
400V 3Phase 5.5kW EtherCAT |
|
|
|
|
| ASD-A2-5543-U |
400V 3Phase 5.5kW Extension DI |
|
|
|
|
|
|
|
|
|
|
|
| Frame G |
|
|
| Model |
Spec |
| ASD-A2-1B23-L |
220V 3Phase 11kW |
| ASD-A2-1B23-F |
220V 3Phase 11kW DMCNET |
| ASD-A2-1B23-M |
220V 3Phase 11kW CANOpen |
| ASD-A2-1B23-E |
220V 3Phase 11kW EtherCAT |
| ASD-A2-1B23-U |
220V 3Phase 11kW Extension DI |
| ASD-A2-1F23-L |
220V 3Phase 15kW |
| ASD-A2-1F23-F |
220V 3Phase 15kW DMCNET |
| ASD-A2-1F23-M |
220V 3Phase 15kW CANOpen |
| ASD-A2-1F23-E |
220V 3Phase 15kW EtherCAT |
| ASD-A2-1F23-U |
220V 3Phase 15kW Extension DI |
| ASD-A2-1B43-L |
400V 3Phase 11kW |
| ASD-A2-1B43-F |
400V 3Phase 11kW DMCNET |
| ASD-A2-1B43-M |
400V 3Phase 11kW CANOpen |
| ASD-A2-1B43-E |
400V 3Phase 11kW EtherCAT |
| ASD-A2-1B43-U |
400V 3Phase 11kW Extension DI |
| ASD-A2-1F43-L |
400V 3Phase 15kW |
| ASD-A2-1F43-F |
400V 3Phase 15kW DMCNET |
| ASD-A2-1F43-M |
400V 3Phase 15kW CANOpen |
| ASD-A2-1F43-E |
400V 3Phase 15kW EtherCAT |
| ASD-A2-1F43-U |
400V 3Phase 15kW Extension DI |
|
|
|
