HOMEPAGE / PRODUCTS / Closed Coupled Pump / CNP - MS

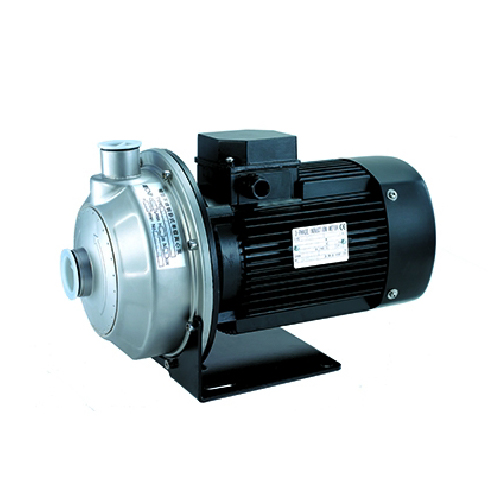

CNP - MS
Closed Coupled Pump

FEATURE
- Capacity : Q up to 27 m3/h
- Head : H up to 40m
- Max operation pressure : 8bar
- Liquid temperature : -10oC to 85℃
- Speed : n2900rpm or 3500rpm
- Power : P up to 2.2kw
- Standard material
- All the parts contact with liquid made of 304 stainless steel.Mechanical seal are standard supply.
- Hydraulic parts
- All stainless steel horizontal single stage not self-priming pump with axial suction, vertical discharge threaded connections.

Applications
- Cooling water
- Domestic water/supply
- Sprinkler systems
- Agriculture
- Boosting & circulation systems
- Water treatment
