HOMEPAGE / PRODUCTS / Closed Coupled Pump / CNP - ZS

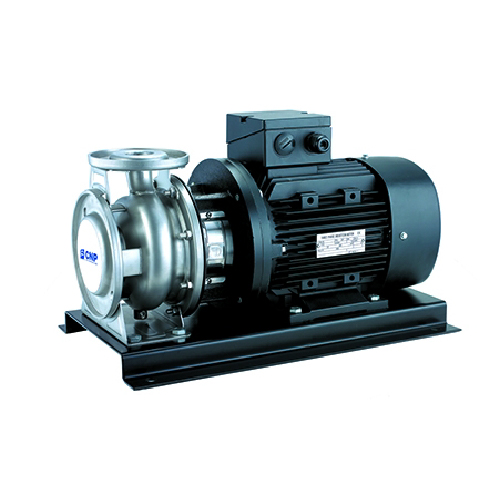

CNP - ZS
Closed Coupled Pump

FEATURES
Pump design according to DIN24255, All the parts contact with liquid made of stainless steel with high efficiency.
Standard TEFC IEC B35 motor driven, single phase up to 2.2kw. Max. working pressure 10 barure 10 bar
- Capacity : Q up to 200m3/h
- Head : H up to 70m
- Temperature : T up to 100℃
- Speed : n 2900rpm or 3500rpm
- Power : P up to 37kw
- Standard material
- All the parts contact with liquid made of 304 stainless steel. Mechanical seal are standard supply.

Applications
- Cooling water
- Water supply/distribution
- Drainage
- General industrial services
