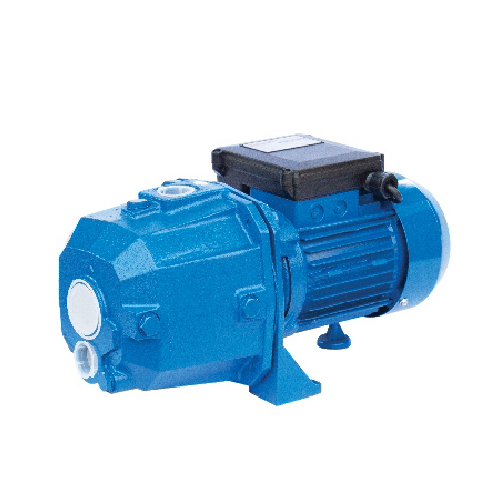

Tosaki - Ta100
Closed Coupled Pump

FEATURE
- Liquid temperature up to 60°C
- Ambient temperature up to 40°C
- Total suction lift up to 9 m
- Continuous duty
- Pump body : Cast Iron
- Impeller : Brass / techno-polymer
- Mechanical seal : Carbon / ceramic / stainless steel
- Motor Single phase
- Heavy duty continous work
- Motor housing : Aluminum
- Shaft : Carbon steel / stainless steel
- Insulation : Class B / F
- Protection : IP44 / IP54
- Cooling : External ventilation

APPLICATION
- Centrifugal pumps with single impeller are able to offer high Bold rate, provide smooth, nonpulsating delivery, and regulate the flow rate over a wide range without damaging the pump.
- For the correct functioning of the pump, use clean water, or nonaggressive liquids charged with small solid impurities.
- To be used in flow irrigation system in gardening, agriculture and industrial fillings.
